Broughton FF13 9kW Industrial Electric Fan Heater 400v
Order in next:
Summary
- 9kW / 30,708 BTU heat capacity
- 400v (3 Phase) 16A plug
- 830m³/HR approx Airflow rate
- Adjustable thermostat dial
- Powder coated steel casing
- FC Impellor Fan
- Over temperature protection
- Handle for easy carrying
- Single or double ducting spigots
- Can be used with up to 10m of ducting
- Made in the UK
- Designed for heavy duty industrial applications
Delivery Options
Specification
SKU: FF13
Heat Capacity: 9kW / 30,708 BTU
Airflow Rate: Approx. 830m³/hr
Fan Type: FC Impellor
Supply: 3 Phase 400v 50 Hz 16A
Sound (3m): 69dB(A)
Spigot Diameter: 1 x 250mm / 2 x 150mm
Mobility: Portable
Dimensions HxWxD (mm): 380 x 300 x 450
Weight: 15.4kg
Overtemp protection: Yes
Max Ducting: 10m
| Brand: | Broughton EAP |
|---|---|
| kW Output: | 9 kW |
| BTU Output: | 30,000 BTU |
| Product Type: | Electric Fan Heater |
| Voltage: | 400v (3 Phase) |
| Ductable: | Yes |
| Portable: | Yes |
| Fixed: | No |
| Warranty: | 2 Years |
| Thermostat: | In-Built (Analogue) |
| Remote Control: | No |
Features
9kW Heating Capacity: Great capacity from a compact space heater - ideal for heating a wide range of commercial & industrial spaces.
Powder Coated Steel Casing: Tough & robust unit, designed to withstand the demands of industrial use.
EC Impellor Fan: Efficient fan distributes warm air evenly, with an airflow of approx. 830m³/HR.
3 Phase 400v 16A Plug: Designed for heavy duty industrial use. Not suitable for domestic use / standard UK 3 pin plug sockets
In-Built Analogue Thermostat: Easy to use dial allows you to set the required temperature of the space. Once the temperature has been reached, the heater switches off - saving on running costs.
100% Clean Warm Air: Safely heats indoor spaces without producing fumes or consuming oxygen.
Ducting Spigots: Available with single or double ducting spigots, allowing the heater to be used with up to 10m of ducting. This means the warm air can be directed where it is required.
Over Temperature Protection: Shuts the heater down automatically if it overheats, ensuring safety on site.
In-Built Handle: Allows this compact unit to be transported easily, placed in and out of storage, and to be put into position wherever it is needed.
Serviceable Design: Built to be serviced and repaired, to provide years of service.
0 Reviews
There are currently no reviews for this product
Write a review
Broughton FF13 9kW Electric Fan Heater
Heavy-duty 3-phase electric space heater for industrial use
The Broughton FF13 is a heavy-duty 9kW 3-phase electric space heater, designed for use in industrial spaces such as workshops, warehouses, garages, work sites, events and more.
This ductable electric fan heater features a tough powder coated steel casing, designed to withstand the demands of regular site use. The high quality FC impellor fan provides an airflow rate of approx. 830m³/HR, to heat spaces comfortably and effectively.

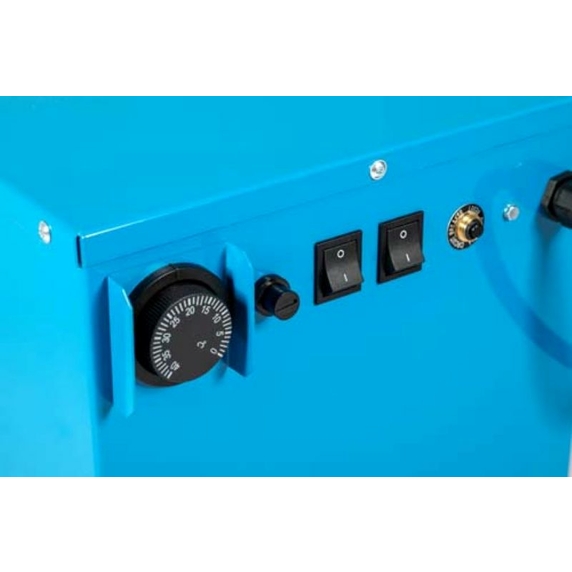

An adjustable thermostat dial allows you to set the required temperature of the space. The heater will switch itself off once the temperature has been reached, saving on running costs.
Over-temperature protection provides security by shutting down the unit if it overheats.
As with all Broughton heaters, the FF13 is a high quality piece of equipment. Made in the UK, it is designed to be fully-serviceable and repairable. It is backed with a 2 year warranty and readily available spare parts.
Ducting Options

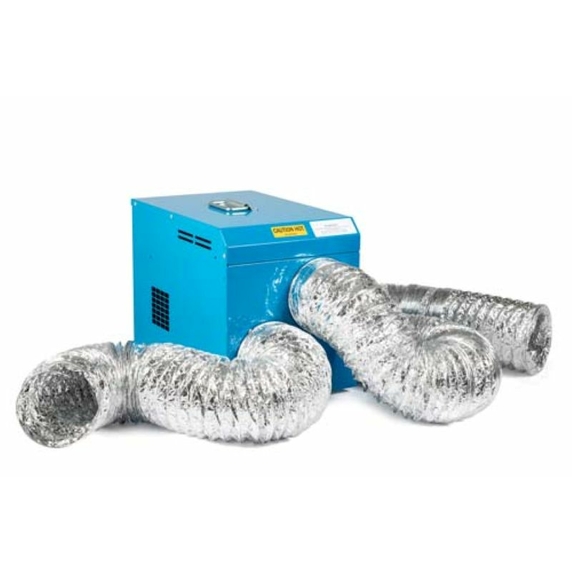

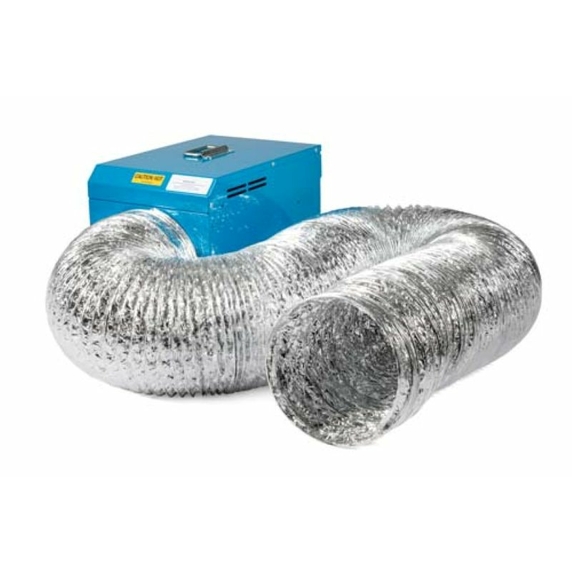

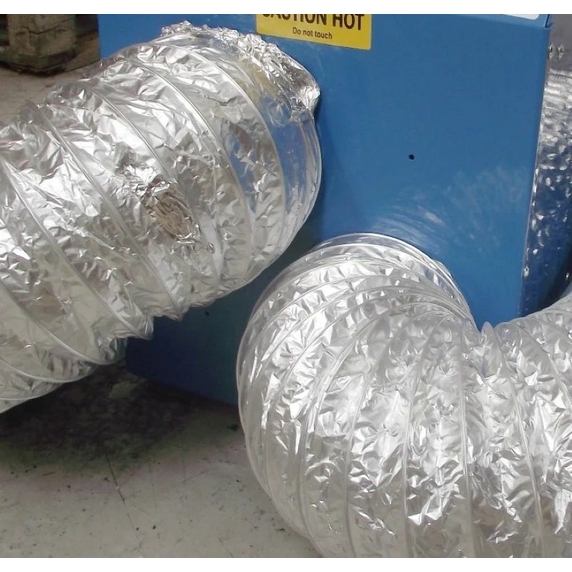

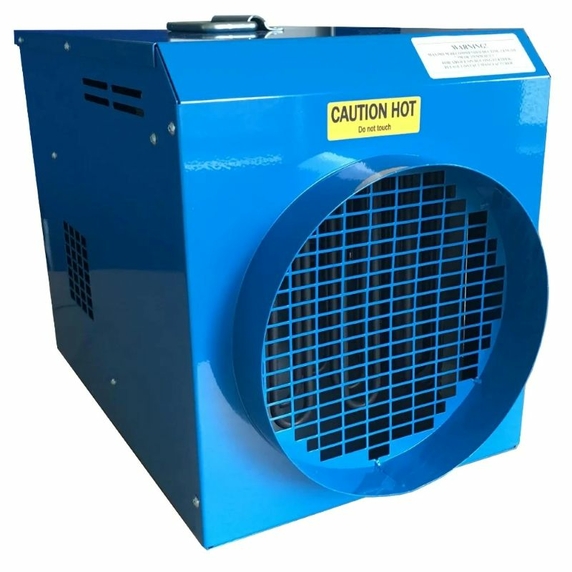

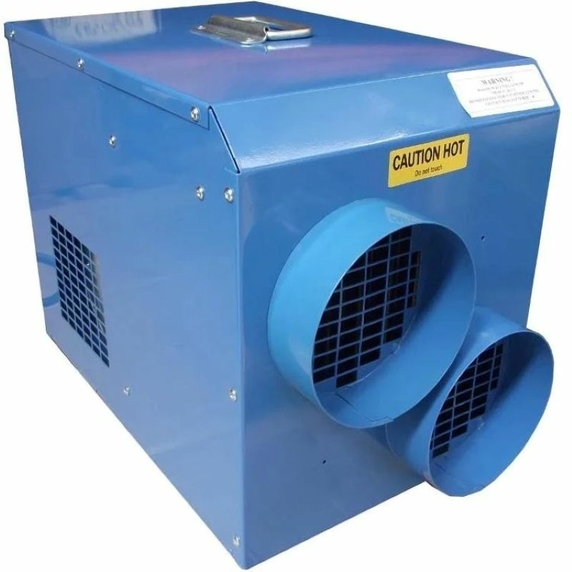

The Broughton FF13 space heater is available with either a single 250mm ducting spigot or twin 150mm ducting spigots. The spigots allows ducting to be attached to the heater, so the warm air can be directed where it is needed.
You can select the spigot option you require and add ducting to your order using the options above.
Please note: This heater must only be used with the manufacturer's aluminium ducting. Do not use plastic flexible ducting or other accessories that are not approved by the manufacturer.
Broughton FF13 9kW Industrial Electric Fan Heater 400v FAQ
The Broughton FF13 electric fan heater offers a heating output of 9kW / 30,708 BTU.
The Broughton FF13 is a 400v (3 phase) 16A electric space heater. It required 400v power supply.
No. As this is a 400v (3 phase) electric heater, it cannot be used in a standard UK domestic plug socket.
Yes! The Broughton FF13 heater is available with either a single 250mm ducting spigot or 2 x 150mm ducting spigots. Ducting can be used to direct warm air up to 10m.
