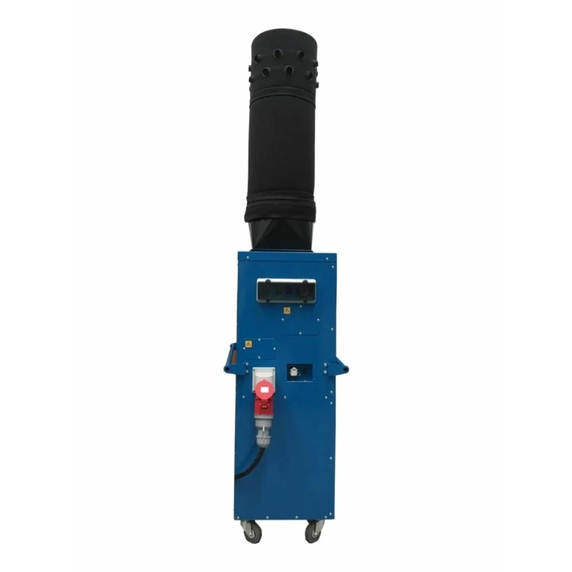

Broughton FFVH32 Upright 18kW Industrial Electric Fan Heater 400v
Order in next:
Summary
- 18kW / 61,400 BTU heat capacity
- Inflating diffuser for 360° heat coverage
- High airflow rate of 2,300m³/HR
- 50⁰C Delta T
- 415v (3 Phase) 32A power supply
- Adjustable thermostat dial & remote thermostat
- Three Heat Settings
- Powder coated steel casing
- Inline filter fitted as standard
- Lockable control panel
- Forward curved impellor fan
- Over temperature protection
- Handles & locking castors for portability
- Made in the UK
- Designed for workshop heating
Delivery Options
Specification
SKU: FFVH32
Heat Capacity: 18kW / 61,400 BTU
Heat Output: Fan Only / 12000w /18000w
Airflow Rate: Approx. 2,300m³/HR
Fan Type: Forward curved impellor
Supply: 32A 415v 3PH+N+E
Current: 28A
Max Delta T: 50°C
Spigot Diameter: 300mm
Mobility: Portable
Weight: 58kg
Overtemp protection: Yes
Dimensions (without diffuser) HxWxD (mm): 1347mm x 603 x 393mm
| Brand: | Broughton EAP |
|---|---|
| kW Output: | 18 kW |
| BTU Output: | 61,400 BTU |
| Product Type: | Electric Fan Heater |
| Voltage: | 400v (3 Phase) |
| Ductable: | No |
| Portable: | Yes |
| Fixed: | No |
| Warranty: | 2 Years |
| Thermostat: | In-Built (Analogue) |
| Remote Control: | Yes |
Features
18kW Heating Capacity: High capacity from portable heater - ideal for heating a wide range of commercial & industrial spaces like workshops, warehouses, sites & events.

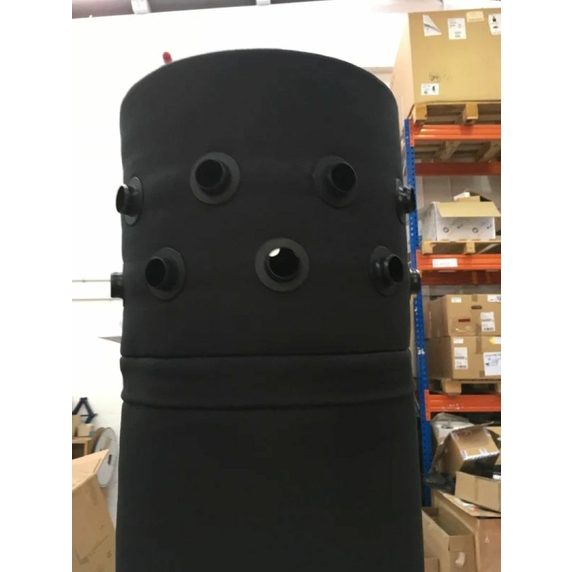

360° Airflow: The inflatable diffuser distributes air evenly all around the unit, for 360 degree coverage. The diffuser is flame retardant, easy to store, washable and conforms to EN13501 B-S1-d0.
Powerful Forward Curved Impellor Fan: Offers up to 2,300 m³/hr airflow - capable of heating workshop quickly and effectively.
Three Heat Settings: Operates at its maximum capacity of 18kW, reduced capacity of 12kW, or in fan only mode - for ventilation on warmer days.
Powder Coated Steel Casing: Tough & robust unit, designed to withstand the demands of industrial use.

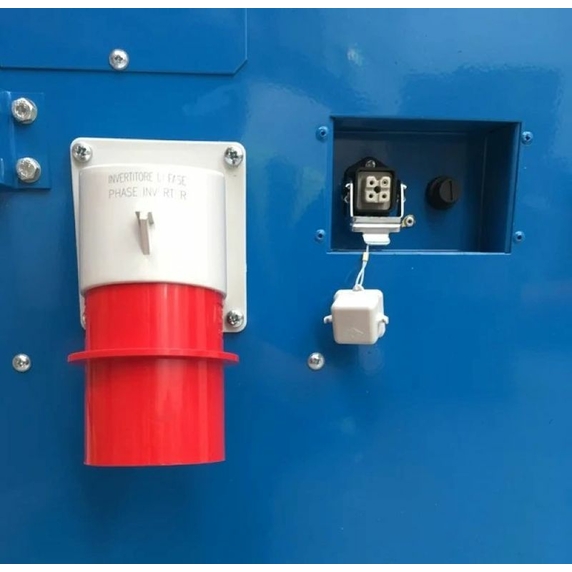

3 Phase 400v 32A Plug: Designed for heavy duty industrial use. Not suitable for domestic use / standard UK 3 pin plug sockets
In-Built Analogue Thermostat: Easy to use dial allows you to set the required temperature of the space. Once the temperature has been reached, the heater switches off - saving on running costs.
Remote Thermostat: Wired remote thermostat allows the temperature to be controlled from outside the space. Ideal for events and pest control.

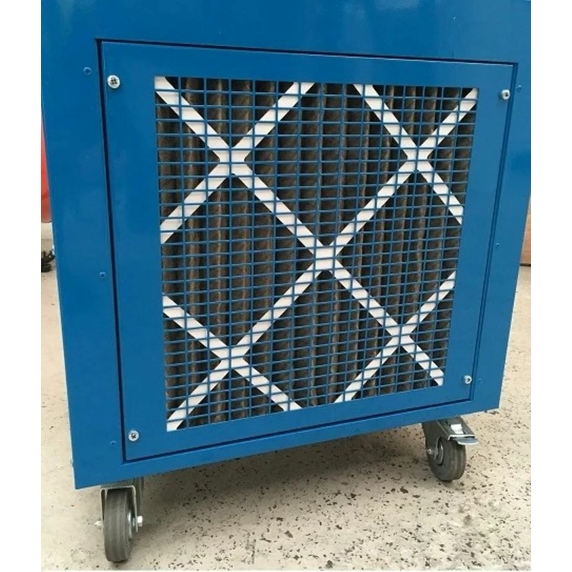

Inline Filter: Filters dust that is pulled into the heater from the ambient air, ensuring clean warm air is blown out the top of the unit.

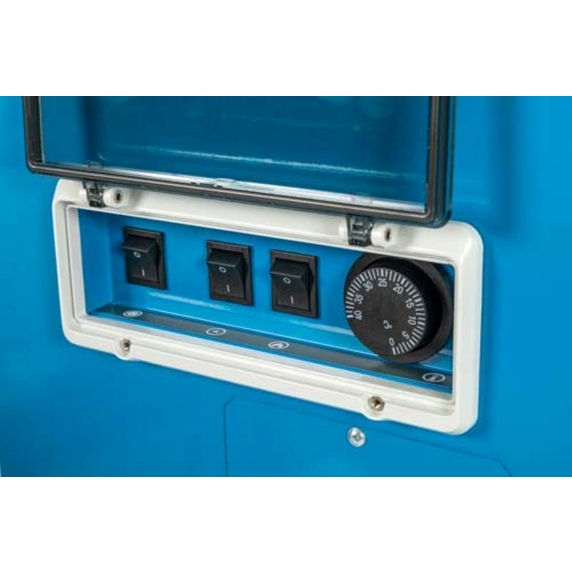

Recessed Control Panel: A lockable cover provides tamper proof controls.
100% Clean Warm Air: Safely heats indoor spaces without producing fumes or consuming oxygen.
Over Temperature Protection: Shuts the heater down automatically if it overheats, ensuring safety on site.

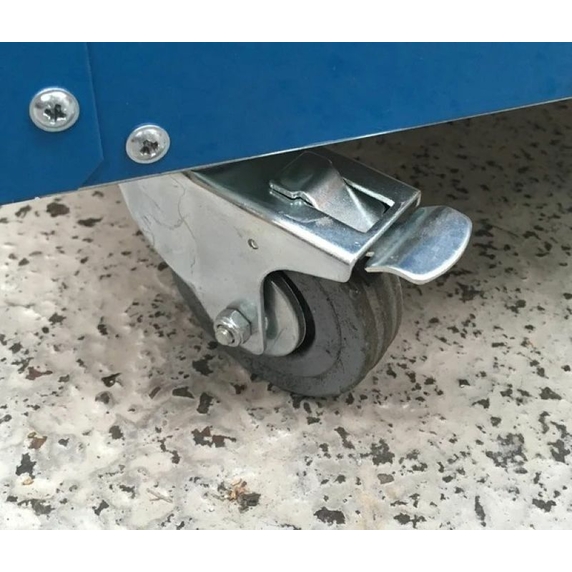

In-Built Handles & Locking Castors: Allow the heater to be transported easily, placed in and out of storage, and to be put into position wherever it is needed.
Serviceable Design: Built to be serviced and repaired, to provide years of service.
0 Reviews
There are currently no reviews for this product
Write a review
Broughton FFVH32 Industrial Electric Space Heater
Upright 18kW workshop heater with 360° warm air output

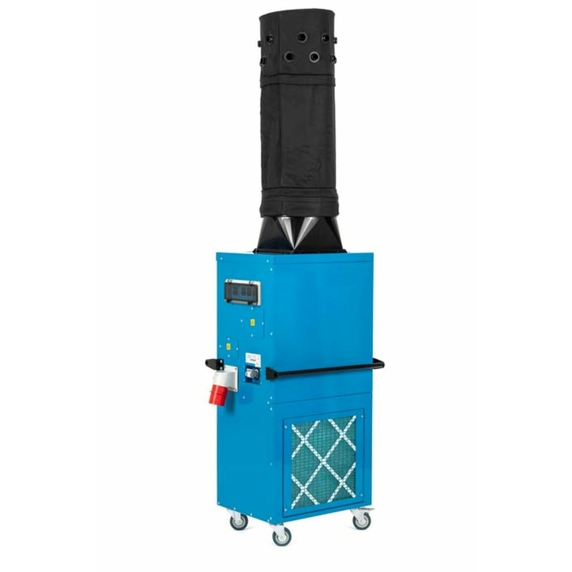

The Broughton FFVH32 is an industrial electric space heater, designed as a powerful & portable 18kW workshop heater.
This unit can operate at its maximum capacity of 18kW, reduced capacity of 12kW, or in fan only mode - for ventilation on warmer days.

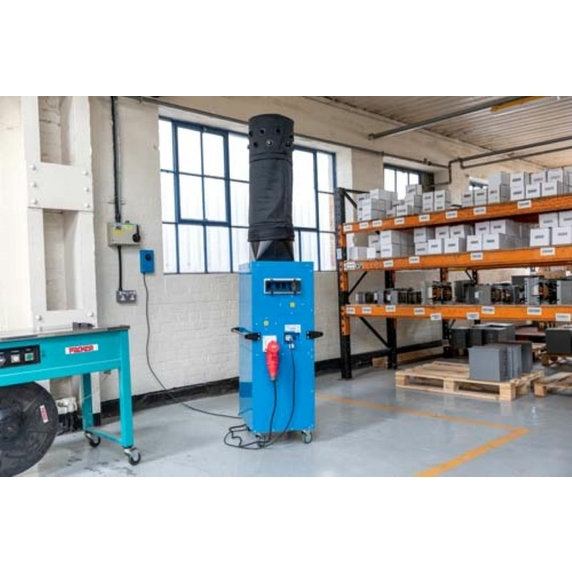

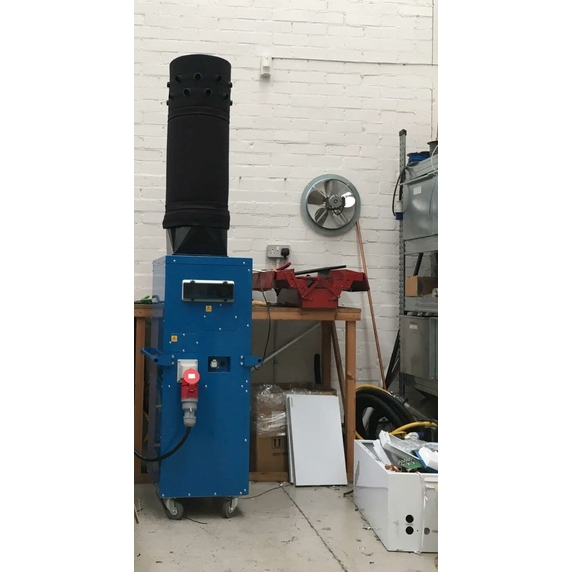

This unique electric space heater sits upright and features an inflating diffuser to circulate warm air 360° around the unit. This, combined with its high airflow rate of 2,300m³/HR, ensures fast and effective heating from one single unit. The FFVH32 can also be used as part of a drying system, to reduce drying times on site.
A tough powder coated steel casing ensures this heater can withstand the demands of regular use. An adjustable thermostat dial allows you to set the required temperature of the space. The heater will switch itself off once the temperature has been reached, saving on running costs. This model also comes with a wired remote thermostat, so the temperature can be controlled from outside the space.
On-board controls are contained within a recessed loackable control panel. An inline filter helps to filkter out dust from the air being circulated.
Over-temperature protection provides security by shutting down the unit if it overheats.
As with all Broughton heaters, the FFVH32 is a high quality piece of equipment. Made in the UK, it is designed to be fully-serviceable and repairable. It is backed with a 2 year warranty and readily available spare parts.
Broughton FFVH32 18kW Industrial Electric Heater FAQ
The Broughton FFVH32 electric space heater offers a maximum heat output of 18kW. It can also operate at 12kW or in fan only mode.
The Broughton FFVH32 is a 400v (3 phase) 32A electric space heater. It requires 400v power supply.
No. As this is a 400v (3 phase) electric heater, it cannot be used in a standard UK domestic plug socket.
The Broughton FFVH32 space heater comes with a 300mm ducting spigot and an inflating diffuser to circulate the warm air 360 degrees around the unit. No extra ducting is required!
