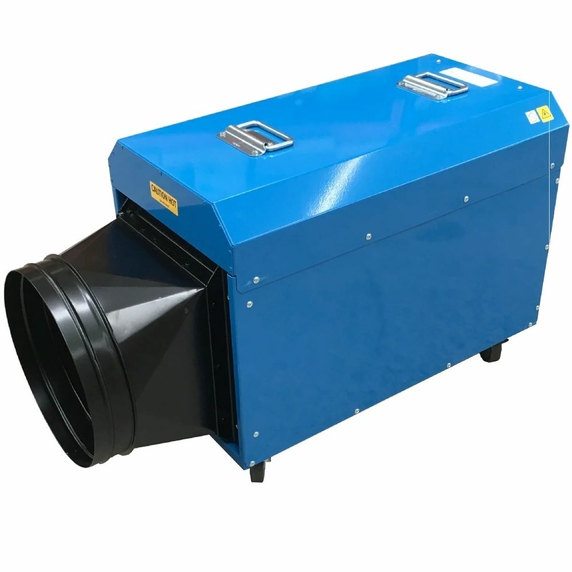

Broughton FFHT32 18kW Industrial Electric Fan Heater 400v
Order in next:
Summary
- 18kW / 61,400 BTU heat capacity
- 415v (3 Phase) 32A power supply
- 1,533m³/HR approx Airflow rate
- Max Delta T 75°c
- Adjustable thermostat dial & remote thermostat
- Three Heat Settings
- Powder coated steel casing
- Powerful axial fan
- Over temperature protection
- Handles & castors for portability
- 300 mm ducting spigot
- Can be used with up to 10m of ducting
- Made in the UK
- Designed for heavy duty industrial applications
Delivery Options
Specification
SKU: FFHT32
Heat Capacity: 18kW / 61,400 BTU
Heat Output: Fan Only/ 12000w /18000w
Airflow Rate: Approx. 1533m³/hr
Fan Type: Axial
Supply: 32A 415v 3PH+N+E
Current: 28A
Max Delta T: 75c
Sound (3m): 69dB(A)
Spigot Diameter: 300mm
Mobility: Portable
Weight: 30kg
Overtemp protection: Yes
Max Ducting: 10m
Dimensions (inc spigots and castors HxWxD (mm): 520x350x902mm
| Brand: | Broughton EAP |
|---|---|
| kW Output: | 18 kW |
| BTU Output: | 61,400 BTU |
| Product Type: | Electric Fan Heater |
| Voltage: | 400v (3 Phase) |
| Ductable: | Yes |
| Portable: | Yes |
| Fixed: | No |
| Warranty: | 2 Years |
| Thermostat: | In-Built (Analogue) |
| Remote Control: | Yes |
Features
18kW Heating Capacity: High capacity from portable heater - ideal for heating a wide range of commercial & industrial spaces like workshops, warehouses, sites & events.
Three Heat Settings: Operates at its maximum capacity of 18kW, reduced capacity of 12kW, or in fan only mode - for ventilation on warmer days.
Delta T 75°C: High temperature rise makes this heater suitable even for pest control applications, such as tackling bed bugs.
Powder Coated Steel Casing: Tough & robust unit, designed to withstand the demands of industrial use.
Axial Fan: Powerful fan distributes warm air evenly and over long distances, with an airflow of approx. 1,533m³/HR.
3 Phase 400v 32A Plug: Designed for heavy duty industrial use. Not suitable for domestic use / standard UK 3 pin plug sockets
In-Built Analogue Thermostat: Easy to use dial allows you to set the required temperature of the space. Once the temperature has been reached, the heater switches off - saving on running costs.

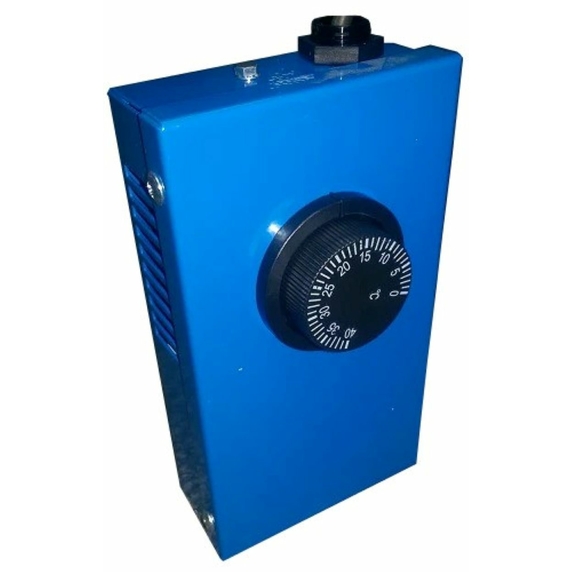

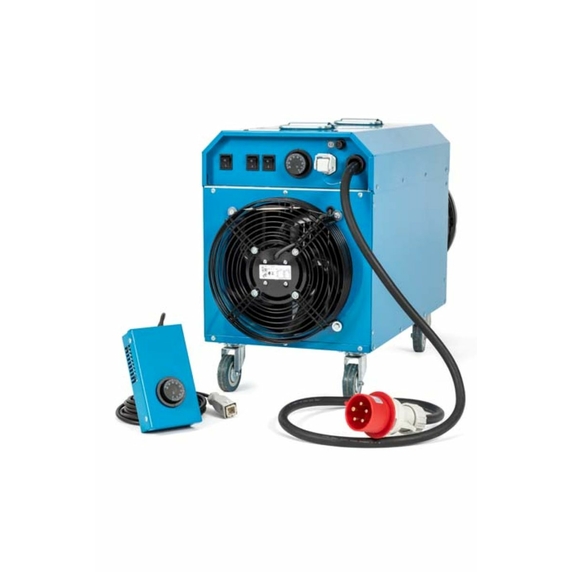

Remote Thermostat: Wired remote thermostat allows the temperature to be controlled from outside the space. Ideal for events and pest control.
100% Clean Warm Air: Safely heats indoor spaces without producing fumes or consuming oxygen.

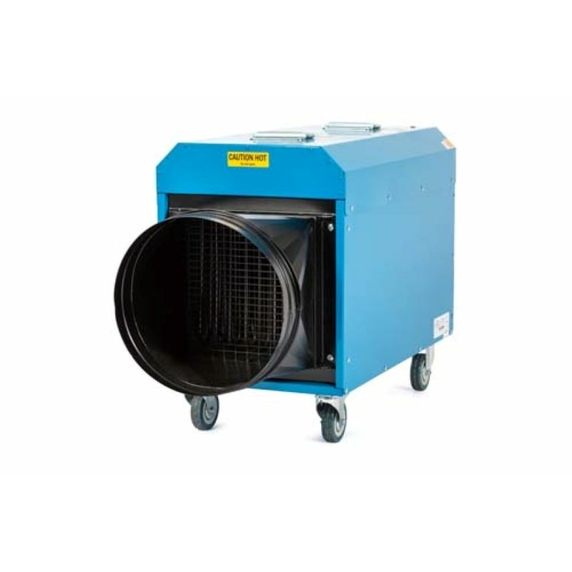

Ducting Spigot: Allows up to 10m of 300mm dia. ducting to be fixed to the front of the unit. This means the warm air can be directed where it is required.
Over Temperature Protection: Shuts the heater down automatically if it overheats, ensuring safety on site.
In-Built Handles & Castors: Allow the heater to be transported easily, placed in and out of storage, and to be put into position wherever it is needed.
Serviceable Design: Built to be serviced and repaired, to provide years of service.
0 Reviews
There are currently no reviews for this product
Write a review
Broughton FFHT32 18kW Industrial Electric Fan Heater
High temperature 3-phase electric space heater for industrial use

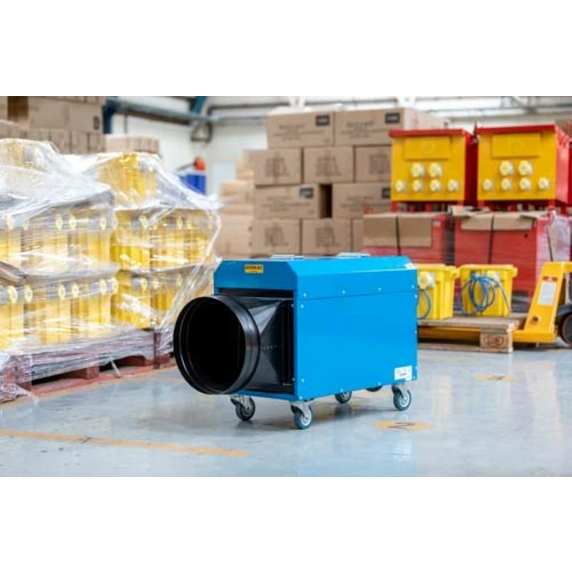

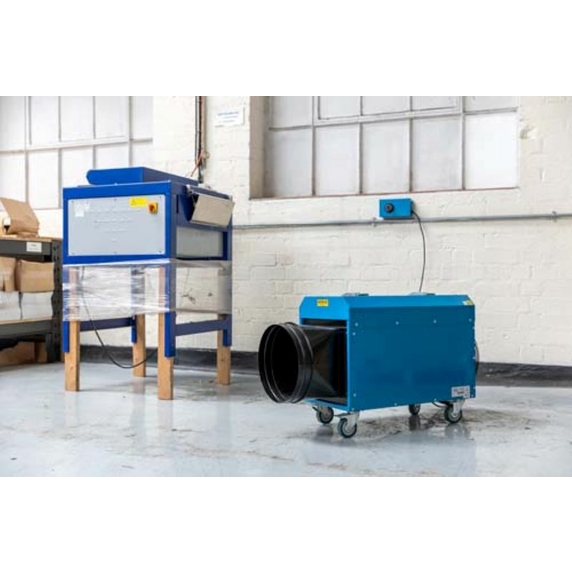

The Broughton FFHT32 is a high temperature 18kW electric space heater, designed for use in industrial spaces such as workshops, warehouses, garages, work sites, events and more.
This unit can operate at its maximum capacity of 18kW, reduced capacity of 12kW, or in fan only mode - for ventilation on warmer days.
With a delta T of +75⁰c, this heater is capable of holding at room at 60⁰C, so it can even be used for pest control applications, such as killing bed bugs in hotels.
This ductable electric fan heater features a tough powder coated steel casing, designed to withstand the demands of regular site use. The powerful axial fan provides an airflow rate of approx. 1,533m³/HR, making it capable of pushing warm air through up to 10m of ducting.

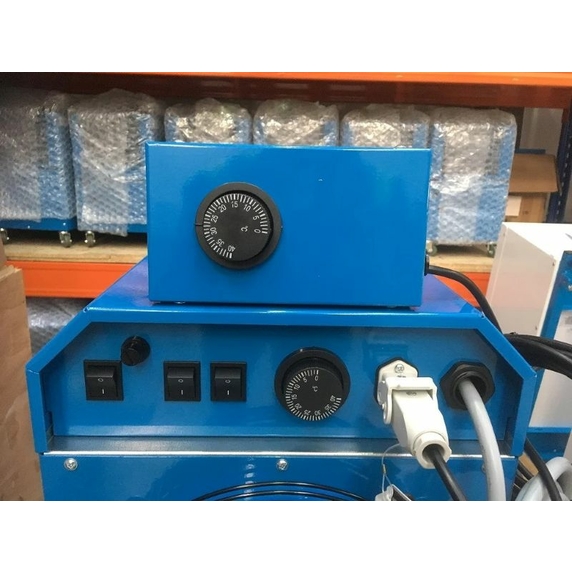

An adjustable thermostat dial allows you to set the required temperature of the space. The heater will switch itself off once the temperature has been reached, saving on running costs. This model also comes with a wired remote thermostat, so the temperature can be controlled from outside the space.
Over-temperature protection provides security by shutting down the unit if it overheats.
As with all Broughton heaters, the FFHT32 is a high quality piece of equipment. Made in the UK, it is designed to be fully-serviceable and repairable. It is backed with a 2 year warranty and readily available spare parts.
Please Note: Any high temperature applications, such as bed bug killing, will require the unit to be situated outside the application area and a length of Broughton insulated ducting will be needed to direct heat into the space.
Ducting Options

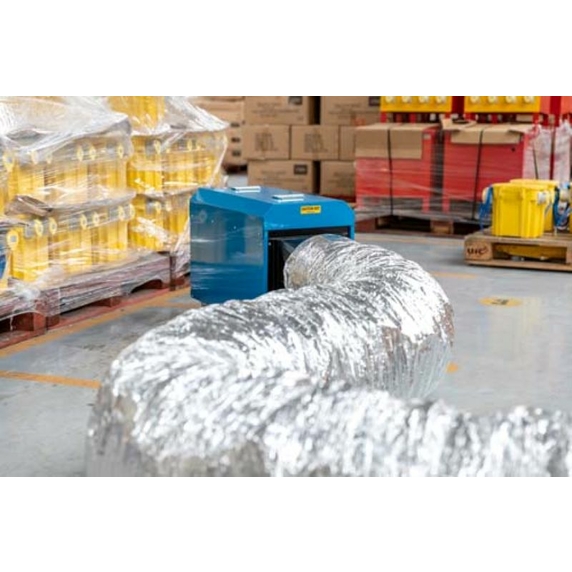

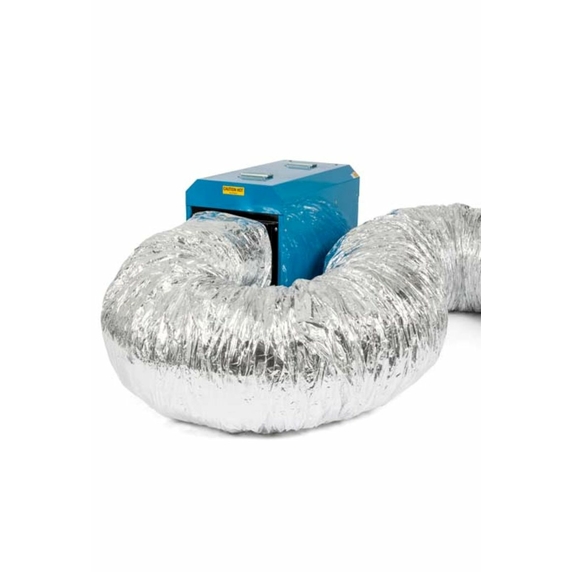

The Broughton FFHT32 space heater comes with a 300mm spigot, which can be used for attaching ducting, so warm air can be directed where it is needed.
You add ducting to your order using the options above.
Please note: This heater must only be used with the manufacturer's aluminium ducting. Do not use plastic flexible ducting or other accessories that are not approved by the manufacturer.
Broughton FFHT32 18kW Industrial Electric Fan Heater 400v FAQ
The Broughton FFHT32 electric fan heater offers a heating output of 18kW. It can also operate at 12kW or in fan only mode.
The Broughton FFHT32 is a 400v (3 phase) 32A electric space heater. It requires 400v power supply.
No. As this is a 400v (3 phase) electric heater, it cannot be used in a standard UK domestic plug socket.
Yes! The Broughton FFHT32 space heater comes with a 300mm ducting spigot on the front. This allows up to 10m of ducting to be used with the heater, so warm air can be directed where it is required.
