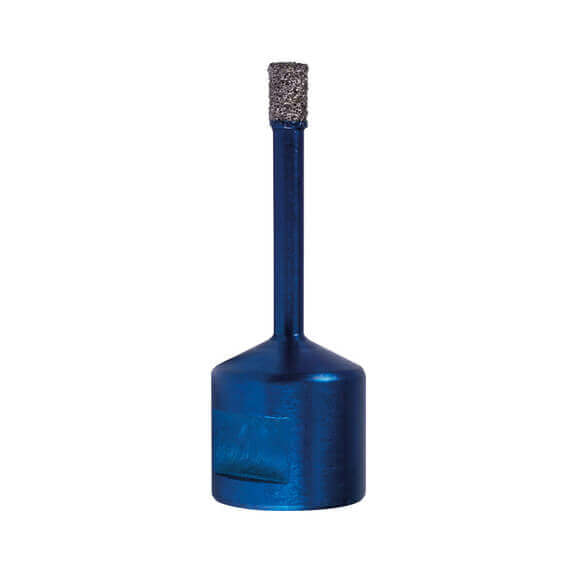

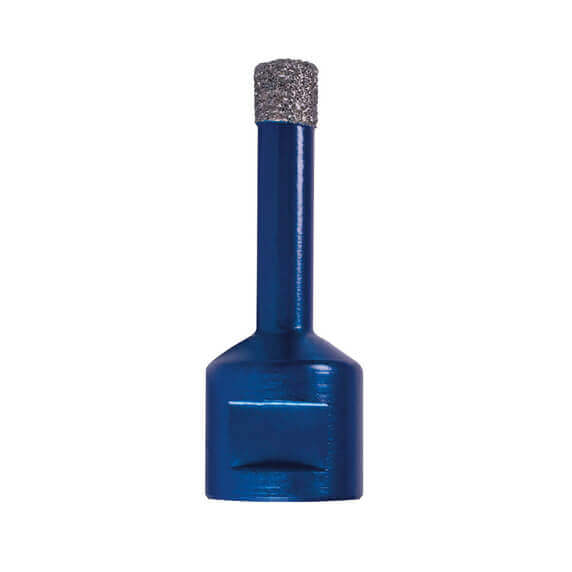

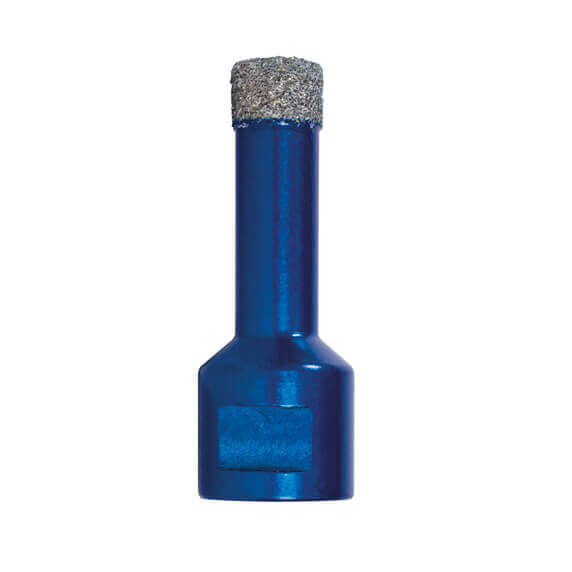

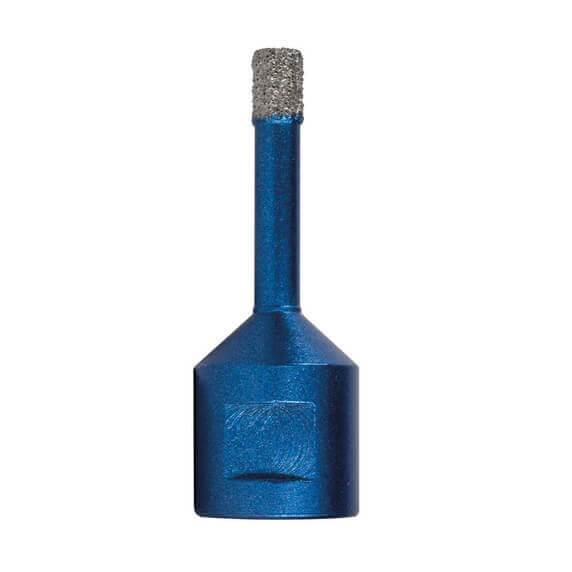

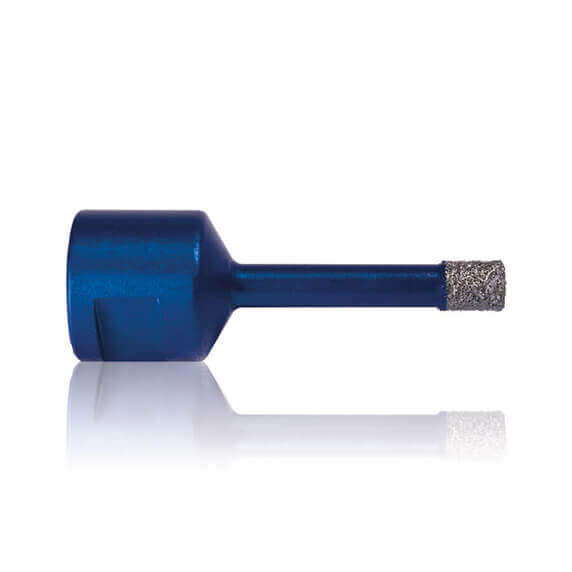

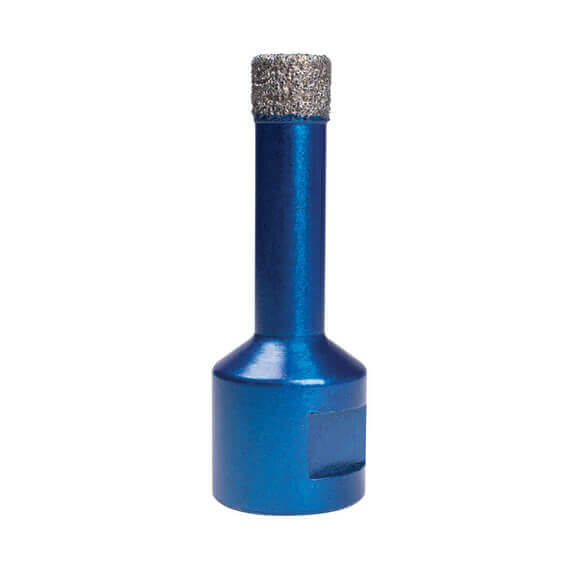

Mexco TDXCEL Wax Filled Diamond Tile Drill Bits (M14 Fit)

Mexco TDXCEL Wax Filled Diamond Tile Drill Bits (M14 Fit)

Professional quality diamond drill bits for porcelain & ceramic tiles

Mexco TDXCEL Wax Filled Tile Drill Bits offer maximum performance and cost per cut when drilling the hardest of man-made and natural decorative materials.

These M14 diamond-tipped tile drill bits are available in a range of sizes. They are ideal for drilling through porcelain, ceramic and stone tiles.

No water is required due to a special wax filled core that melts, lubricates and cools when drilling.

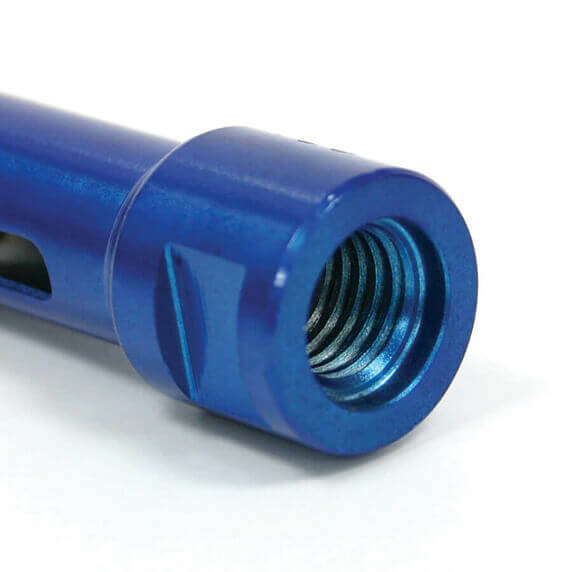

These drill bits are supplied to fit M14 thread Angle Grinders. An M14 to Hex adaptor can be purchased separately for use with a High Speed Corded Drill (Part Number TDXM14HEXSET).

About the Mexco XCEL Range

The Mexco XCEL range of products are simply our best in class, due to an uncompromised use of raw materials in their manufacture they offer the user a cutting or drilling experience that is faster and cleaner with an optimum cost per cut.

APPLICATIONS

• Bathroom Fittings
• Kitchen Fittings
• Porcelain
• Ceramic Tiles
• Stone Tiles
• Stone Worktops

INSTRUCTIONS FOR USE

• Ensure you are using the correct type of machine for the drilling application (refer to the recommended RPM and machine instructions). Ensure all forms of percussion or hammer action are turned OFF.
• To start drilling, use a Mexco suction cup guide to enable an accurately positioned hole. Alternatively place the drill at a 30 degree angle. Drill until tile drill bit starts to penetrate the material. Once the hole has started to form, bring the drill up into the upright position and continue.
• As the tile drill starts to work, the heat will cause the wax to melt, lubricating the cutting surface.
• Periodically remove the bit from the cut to allow cooling.
• For horizontal drilling minimal pressure is required.
• For vertical drilling the weight of the machine will give sufficient pressure.
• Ensure periodic removal of debris from tip of the bit as a build-up of dust and debris will prevent the wax from lubricating the tip and shorten the lifetime of the drill bit considerably.

USEFUL INFORMATION

The tip of the drill bit will become HOT, please handle with care and wear suitable PPE.

Use on an angle grinder (M14 fitment) or with a high speed corded drill (1800rpm) (Requires TDXM14HEX chuck adaptor)

Only use for drilling the tile, not the material behind the tile.

Use appropriate drill bit following penetration of tile.
