Redhill Loadtek Standard Plate & Board Trucks with Adjustable Bars - 500kg
Order in next:
Summary
- 500kg Capacity
- Moves plates, boards & panels safely
- Two support bars with adjustable positions
- Two sizes available
- Welded angle steel chassis
- Blue epoxy finish
- Plywood platform
- Two fixed & two swivel 200mm castors
- Additional support bars available
- Total Stop Brakes available
- Made in Britain
Delivery Options
Specification
SKUs
TP35 - 700 X 1000mm platform
TP36 - 700 X 1200mm platform
Deck Height: 325mm
Support Bar Height: 725mm
Bar Positions: 5 (TP35) / 6 (TP36)
Wheel Diameter: 200mm
Weight: 46kg (TP35) / 54kg (TP36)
Material: Steel
Platform material: Plywood
| Brand: | Redhill |
|---|---|
| Product Type: | Panel Trolley |
| Load Limit (kg): | 500 |
| Width (mm): | 700 |
| Length (mm): | 1000 |
| Length (mm): | 1200 |
0 Reviews
There are currently no reviews for this product
Write a review

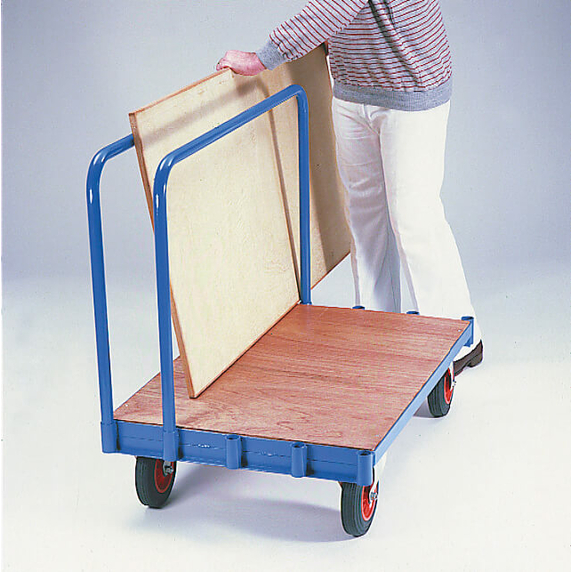

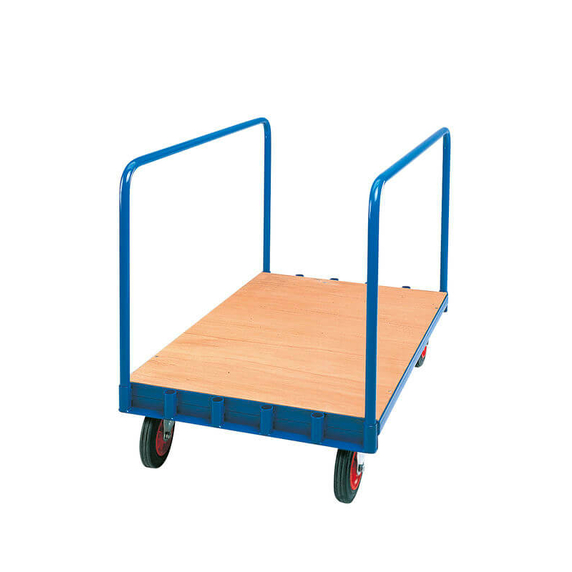

Redhill Loadtek Standard Plate & Board Trucks
500kg plate & board trolleys with adjustable support bars
Made in Britain to the highest quality standards, Redhill Loadtek 500kg Standard Plate Trucks are manufactured using a welded angle chassis with removable bars.
The support bar height is 725mm from the deck, and the deck height is 315mm. Bars and the frame are all finished in a tough blue epoxy coating.
Two sizes of truck are available: the first has a 1000 x 700mm platform, with 5 positions for bars; the second has a 1200 x 800mm platform, with 6 positions for bars.
Wheels are fitted with 2 x swivel and 2 x fixed castors, 200mm diameter rubber tyres and roller bearings for easy manoeuvrability.
Optional Extras
Additional support bars are available in lengths of 1000mm and 1200mm, depending on the size of truck you select.
Total Stop Brakes are also available. Supplied as a pair, these braked wheels ensure greater stability and security when the truck is stationary.
